Philip DFM100 M3543A / 989803196431 PADDLE
Datos del producto:
| Lugar de origen: | Original |
| Nombre de la marca: | PHILIP |
| Número de modelo: | DFM100 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | Negotiation, pls contact me |
| Detalles de empaquetado: | caja de cartón |
| Tiempo de entrega: | Dentro de 1-2 días hábiles después de que se confirmó el pago |
| Condiciones de pago: | T/T, Unión Occidental |
| Capacidad de la fuente: | 10 |
|
Información detallada |
|||
| PN: | M3543A / 989803196431 | Modelo: | DFM100 |
|---|---|---|---|
| Cepo: | Disponible | PRICE: | NEGOTIABLE |
| Garantía: | 90 días | Condición: | Nuevo y Original |
Descripción de producto

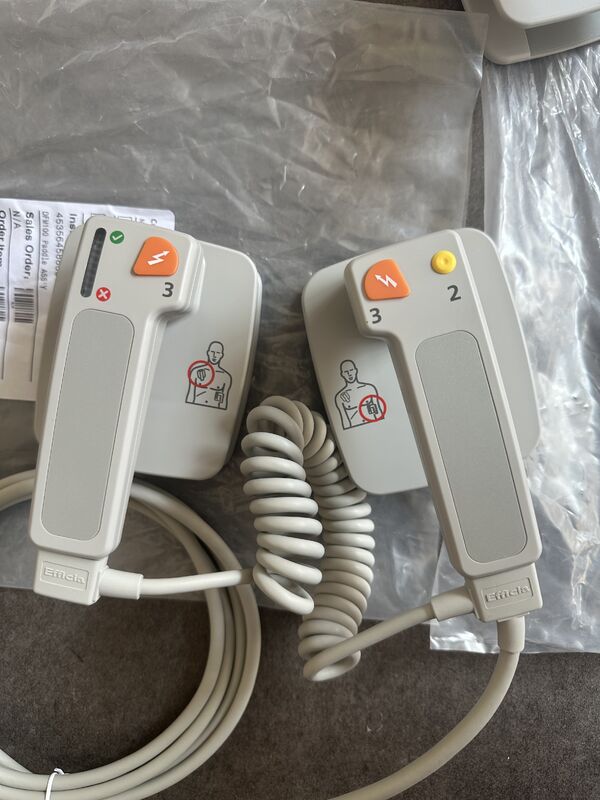

Philip DFM100 M3543A / 989803196431 PADDLE
1. Model & Compatibility
- Paddle Part No.: M3543A / 989803196431
- Compatible Device: Philip Efficia DFM100, HS Intrepid
- Type: Reusable external adult / paediatric combination defibrillation paddles
2. Clinical Energy & Shock Waveform
- Adult mode (≥10 kg): Max shock energy 200J
- Paediatric mode (<10 kg): Automatic low energy output (≤50J)
- Waveform: Biphasic Truncated Exponential (BTE)
- Automatically adjust output by patient thoracic impedance
- Impedance detection range: 25 Ω – 250 Ω (external)
3. Structural & Functional Features

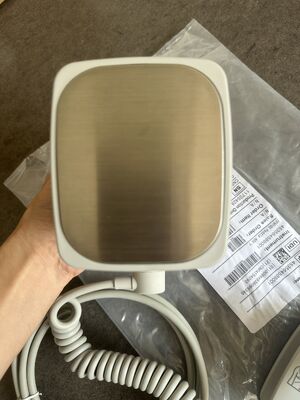

- Integrated dual-surface design: Adult large electrode surface + built-in paediatric small electrode surface
- Right sternum paddle: Equipped with PCI contact indicator light
Green = good skin contact; Orange / Red = poor contact
- Left apical paddle: With remote charge button
- Both paddles with orange synchronous shock discharge buttons
- Built-in 2-lead ECG acquisition for arrhythmia analysis
4. Electrical & Physical Parameters
- Sensing signal: 500nA RMS / 571Hz; 200μA RMS / 32kHz
- Safety classification: BF type, defibrillation-proof
- Cable length: Approx. 2.5 m
- Reusable & sterilizable
5. Disinfection Requirements
- High-temperature high-pressure sterilization: Up to 134°C
- Supported chemical disinfection and wipe disinfection
- Repeatedly autoclavable for clinical long-term use
Quiere saber más detalles sobre este producto
