Philip FM20 FM30 PN M2703 Fetal Land Card Good Condition
Datos del producto:
| Lugar de origen: | Original |
| Nombre de la marca: | philip |
| Número de modelo: | FM20FM30 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | Negotiation, pls contact me |
| Detalles de empaquetado: | caja de cartón |
| Tiempo de entrega: | Dentro de 1-2 días hábiles después de que se confirmó el pago |
| Condiciones de pago: | T/T, Unión Occidental |
| Capacidad de la fuente: | 10 |
|
Información detallada |
|||
| Garantía: | 90 días | PN: | M2703-67001 Las empresas de servicios de telecomunicaciones |
|---|---|---|---|
| Modelo: | FM20FM30 | Cepo: | Disponible |
| paquete: | PAQUETE ORDINARIO | Condición: | Bien |
| Resaltar: | Fetal Land card Philip FM20,Fetal Land card Philip FM30,PN M2703 Fetal Land Card |
||
Descripción de producto

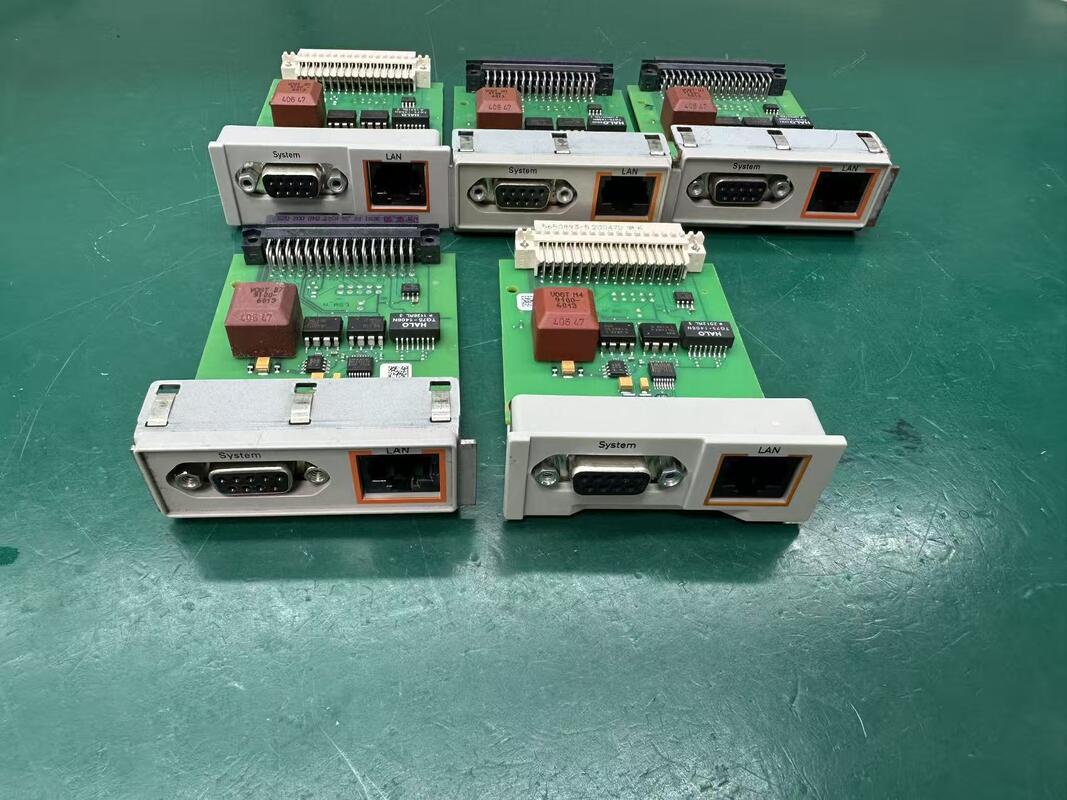

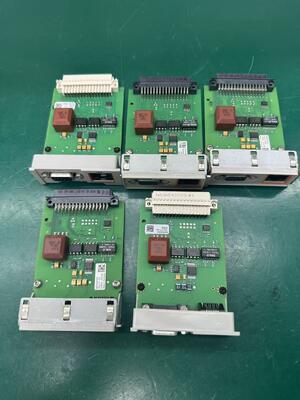

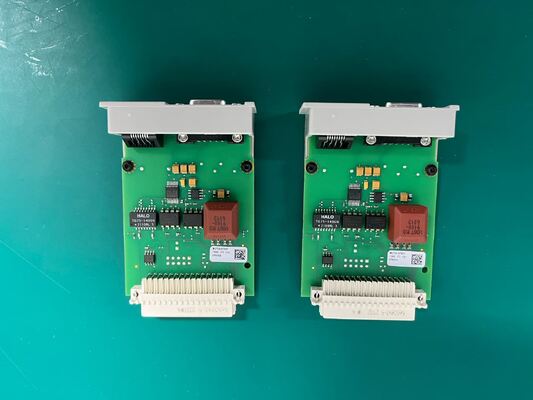

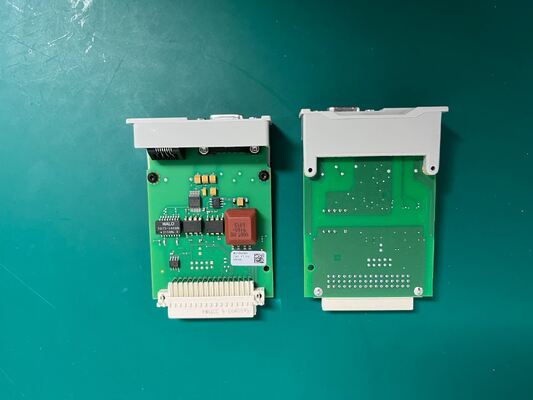

Philips Avalon FM20 / FM30 Fetal Monitor Network Card (LAN Interface) Parameters
Basic Information
- Model: Philips Avalon FM20 (M2702A), FM30 (M2703A)
- LAN Interface Type: Optional integrated LAN/RS232 system interface module (Option J70, Part No. M2703-67501)
- Interface Standard: 10BASE-T Ethernet (IEEE 802.3)
- Speed & Duplex: 10 Mbps, Half-Duplex only (no auto-negotiation, no 100 Mbps support)

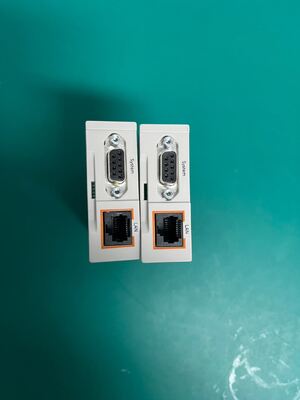

- Port: RJ45 female connector (rear panel)
Network Configuration
- IP Address Assignment:
- Manual static IP configuration (via monitor setup menu)
- Automatic via BOOTP (DHCP not natively supported; BOOTP server required for dynamic IP)
- Network Protocols:
- TCP/IP (IPv4 only)
- Connection Indication (CI) messages: Broadcast / Unicast modes (for OB TraceVue / IntelliSpace Perinatal)
- Supported Systems: IntelliSpace Perinatal (E.0+), OB TraceVue obstetric surveillance systems
- Dual Interface Support: LAN + isolated RS232 (MIB/IEEE 1073) for parallel EMR/monitoring system connection (read‑only via RS232)
Electrical & Safety
- Isolation: Fully galvanically isolated (medical-grade, compliant with IEC 60601‑1‑2:2014 / EN 60601‑1‑2:2015)
- EMC Compliance: IEC 60601‑1‑2, ICES‑003 (Canada)
- Power Consumption: < 60 W total monitor power (LAN module included)
Physical & Installation
- Connector: RJ45 (8P8C)
- Cable: Category 5e (Cat5e) or better twisted‑pair Ethernet cable
- Network Segment: Monitor and surveillance PC/server must be on the same local network segment (no routing across subnets by default)
Key Notes
- LAN is an optional upgrade (Option J70); not standard on base FM20/FM30 units.
- Fixed 10 Mbps half‑duplex: Network switch port must be manually forced to 10 Mbps / half‑duplex (auto‑negotiation disabled) to avoid link issues.
